Topic: 1997 Pantera II No tounge weight

This topic has 6 replies, 3 voices, and was last updated 3 years, 1 month ago by AldenDemuth.

Viewing 7 posts - 1 through 7 (of 7 total)

Author

Posts
March 13, 2023 at 6:10 pm #709772

jhndrtxn
Participant

Hey all hoping to get an idea on how to remedy this problem. I have a 97 Pantera II that I put a 2012 optimax pro xs 200 and 2 12ft talons on the back and don’t have hardly any tounge weight the motor that was on it before was a 1998 225 3.0L and it had the same issue I noticed the leaf spring bushing were wore out so I replaced those minus the main frame bushings and also replaced the center link for the tandems, that helped the ride of the trailer and stopped the bucking but I still don’t have much tounge weight my upright is welded to the frame so I can’t move it as are the leaf springs mounts. I know small movements can make a big difference in weight transfer but I’m not sure the right way to go about it

March 13, 2023 at 8:02 pm #709773

Bass Cat Boats
Keymaster

Adding weight to the trailer is a sim0le solution. When the engine weights were changing back then it was hard to keep up with the variety.

March 14, 2023 at 7:53 am #709775

jhndrtxn
Participant

Would you suggest welding a plate to the bottom under the upright or plate weights in the spare tire carrier

May 2, 2023 at 11:36 am #711588

jhndrtxn
Participant

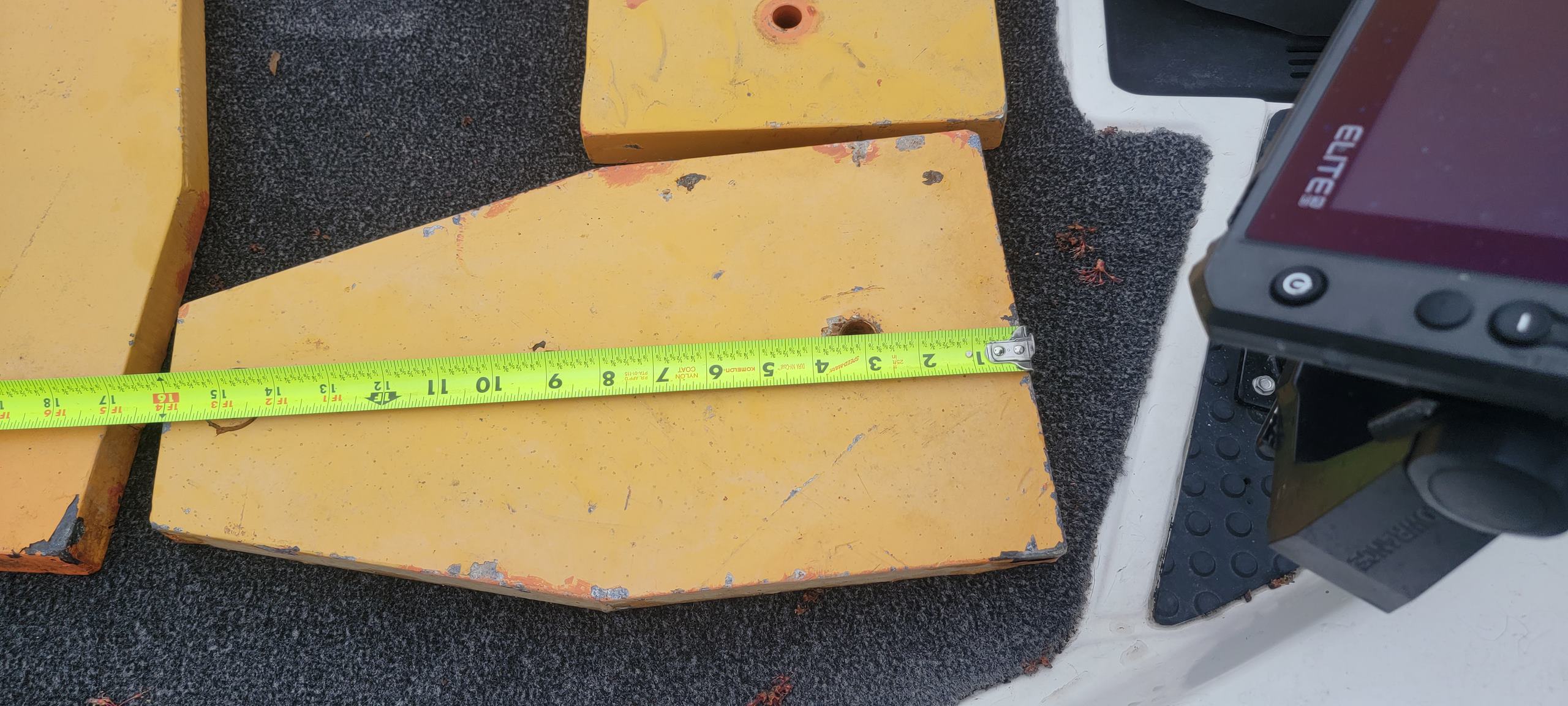

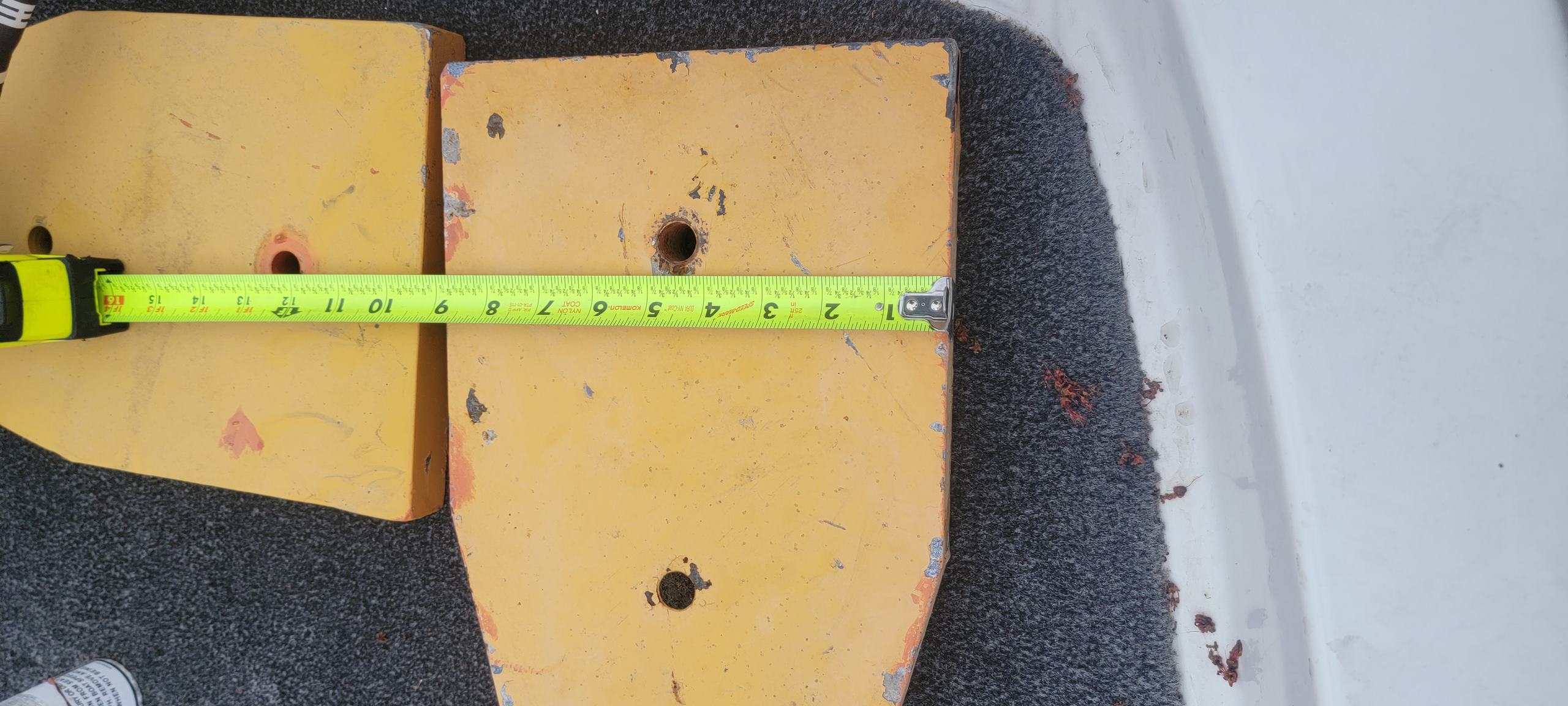

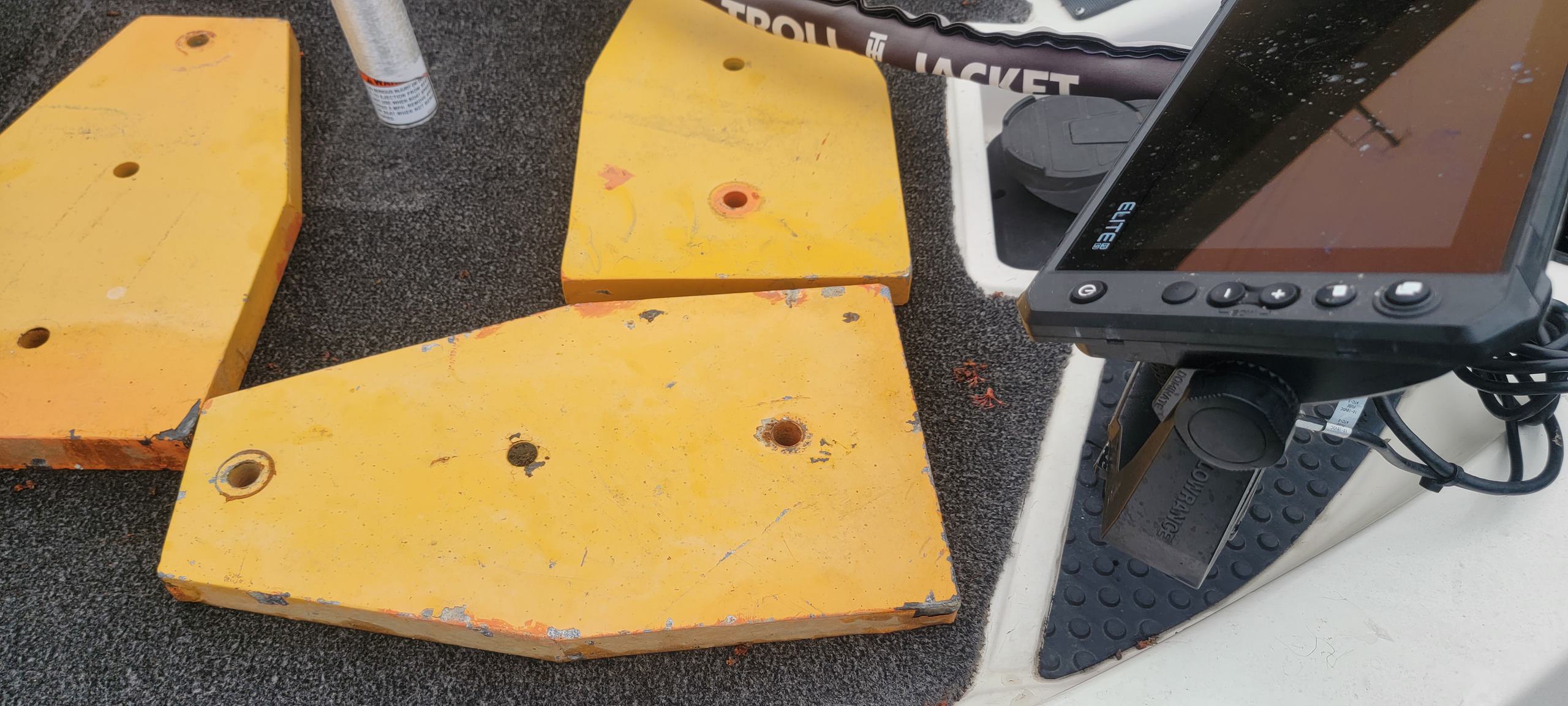

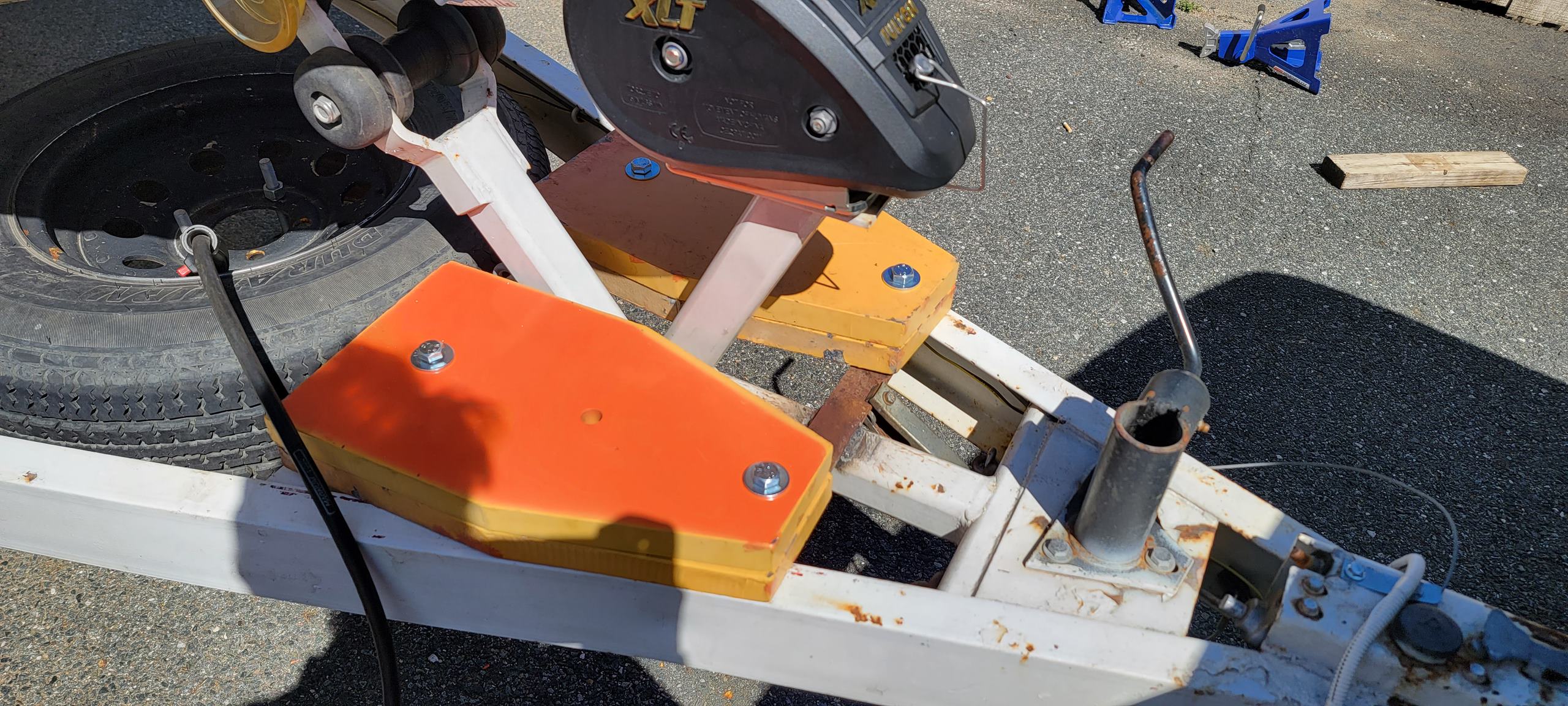

This is what I ended up doing I’m adding 2 more plates as it’s still a little light when on wet pavement but this has helped significantly

May 2, 2023 at 2:23 pm #711604

Bass Cat Boats
Keymaster

We also suggest you look at your brakes as those do not appear to be operational.

May 2, 2023 at 3:04 pm #711609

jhndrtxn
Participant

Yea I need to find a master cylinder rebuilt kit, I did have them working when I registered the trailer last year

May 3, 2023 at 5:34 am #711636

AldenDemuth
Participant

Add extra weight to the front of the trailer. You can use weights or even install additional batteries.
Check the location of the weight on the trailer. If the weight is too close to the rear axle, it may reduce the weight of the tongue. Try moving the load closer to the front axle.
Figure out if you have the correct wheel balance on the trailer. If the wheels are not balanced correctly, it can cause improper weight distribution.
If you have the option, try changing the mounting position of the leaf springs. This may change the angle at which the leaf springs interact with the trailer and affect the weight distribution.
You may need to add additional leaf springs or install reinforced leaf springs to increase the lift of the trailer.
